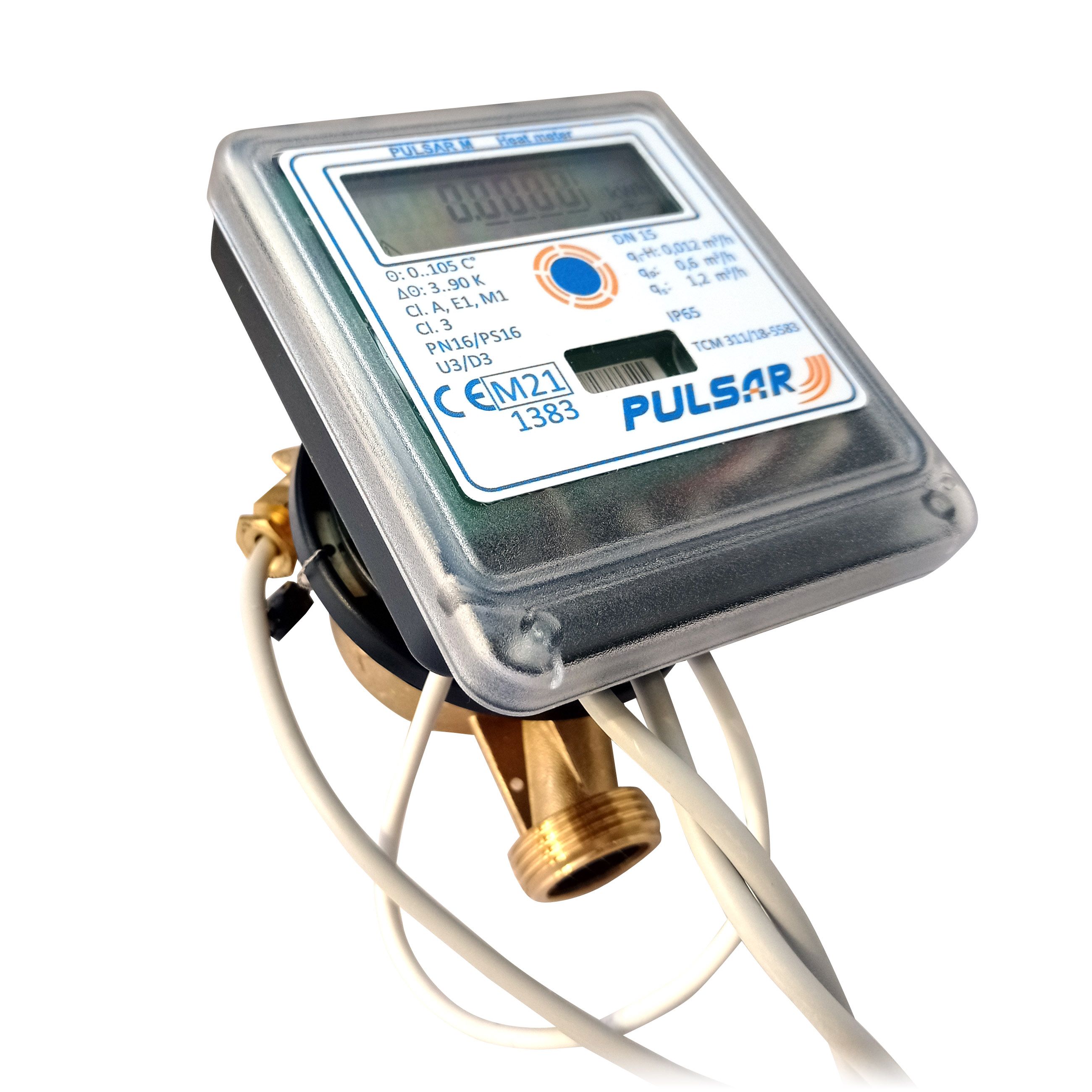

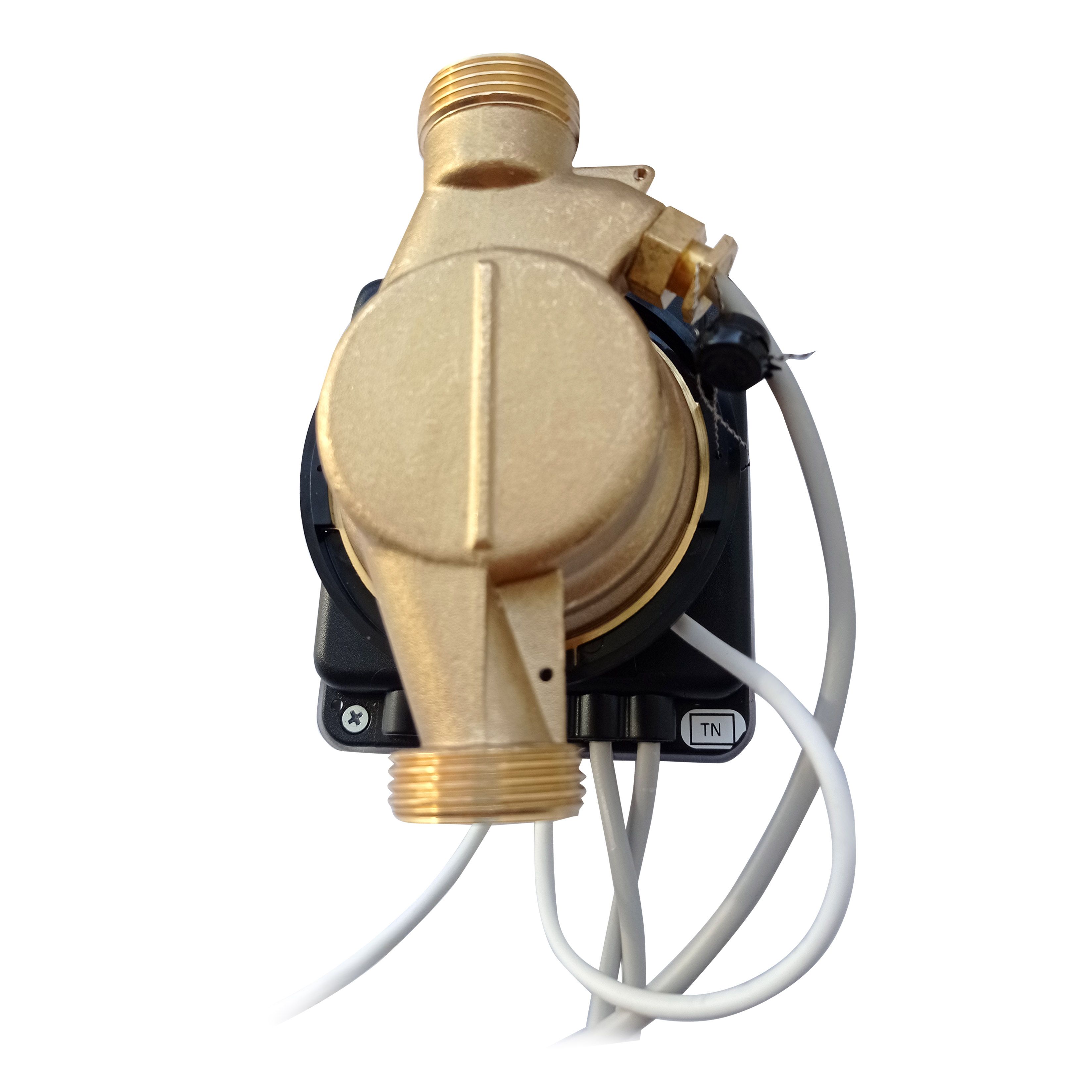

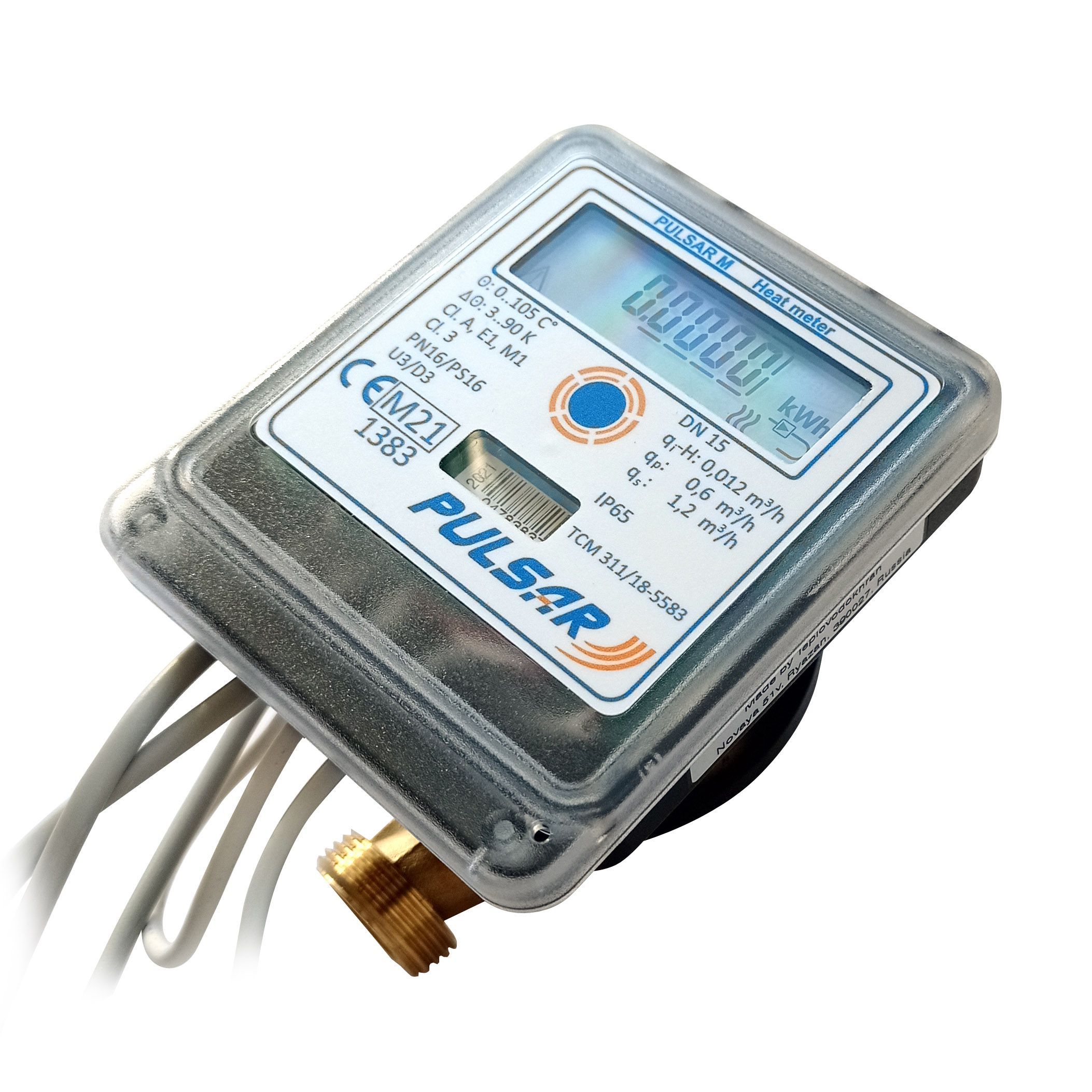

Compact heat meters Pulsar mechanical

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Купить оптом

Description

Designed to measure thermal energy in an apartment, private home, small office or retail space. Installed in a pipeline that supplies heat to the facility.

Available according to EN 1434.

Interfaces

  • Pulse output
  • RS-485
  • M-Bus
  • Wireless M-Bus
  • LoRa
  • Ultra narrow RF band (Pulsar IoT)

  • Measures thermal energy consumption in heating and cooling systems
  • Compact dimensions

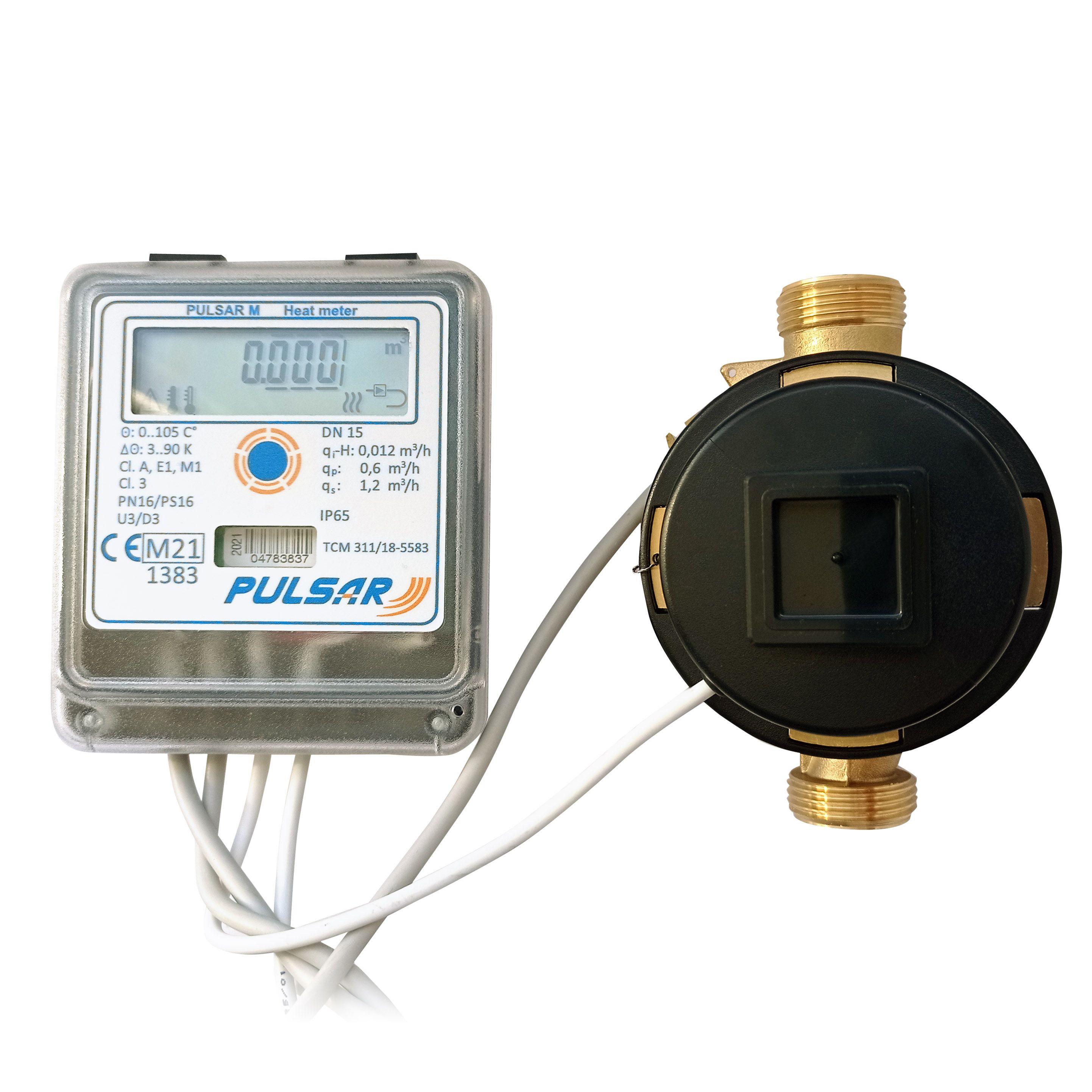

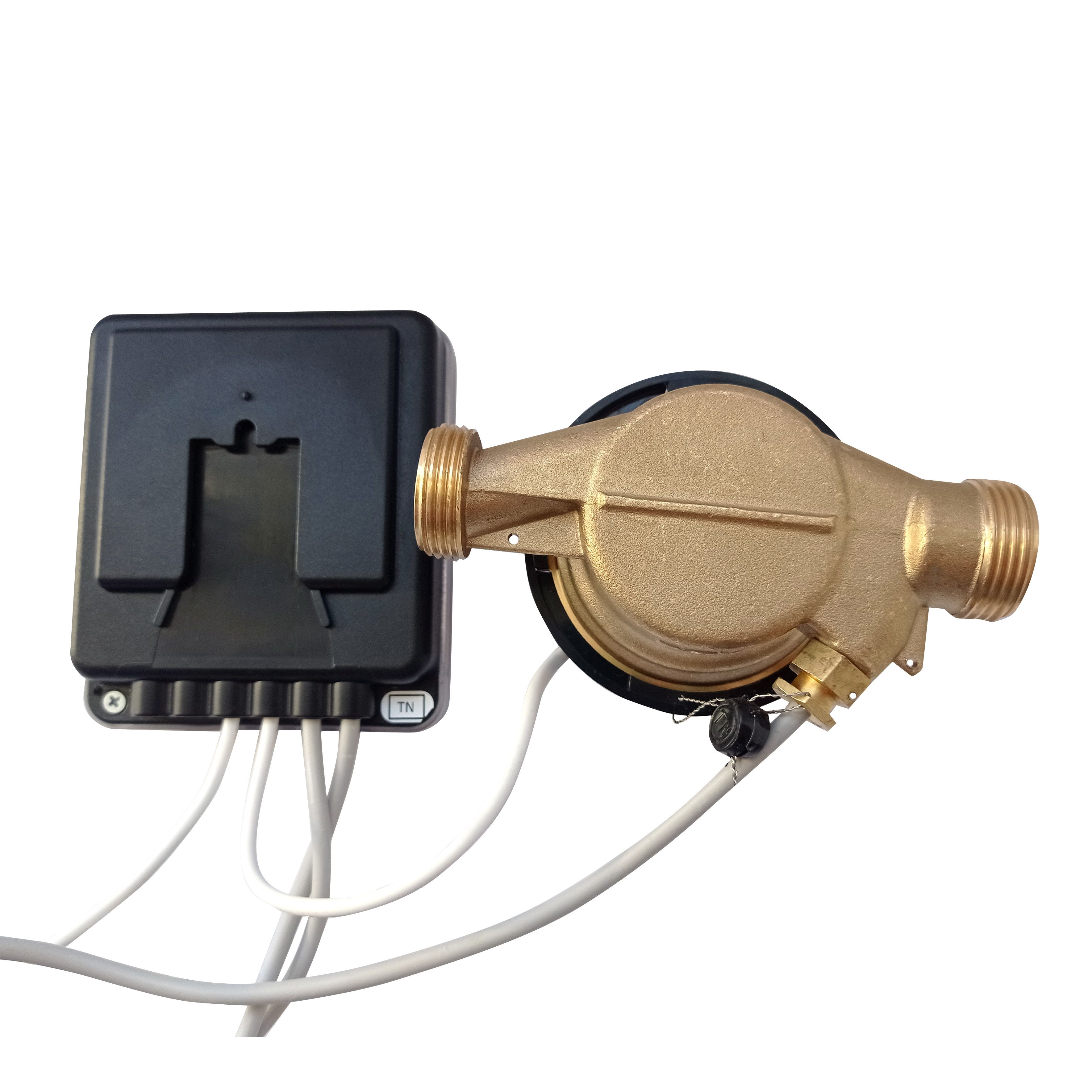

  • Removable calculator
  • Pre - equipped for connection of water meters with 4 pulse output
  • Insensitive against dirtt, no magnet inside hydraulic part
  • Hour, day or month data history available
  • MID Certificate TMC 311/18 - 5583
Nominal DN 15; 20
Minimum flow qi, m3/h (horizontal/vertical) 0,012/ 0,24; 0,02/ 0,04; 0,03/ 0,06; 0,03/ 0,06; 0,05/ 0,10
Nominal flow qp, m3/h 0,6; 1; 1,5; 1,5; 2,5
Maximum flow qs, m3/h 1,2; 2; 3; 5
Thread G3/4B; G3/1B; G1B
Length, mm 110; 130
Ambient temperature, C 5..55
Pressure loss at qp, bar < 0,2
Accuracy class (EN1434) 3
Nominal pressure, bar 16
Liquid specification Water
Direction of flow One direction
Temperature range, C 0..90
Installation Return flow/forward flow horizontal/vertical
Sensitivity to irregularity class U3, D3
Temperature range, C 0...90
Temperature difference range, K 3-90
Temperature resolution, K 0,01
Ambient temperature, C 5...55
Protection IP65
Environmental class A
Electromagnetic class E1
Mechanical class M1

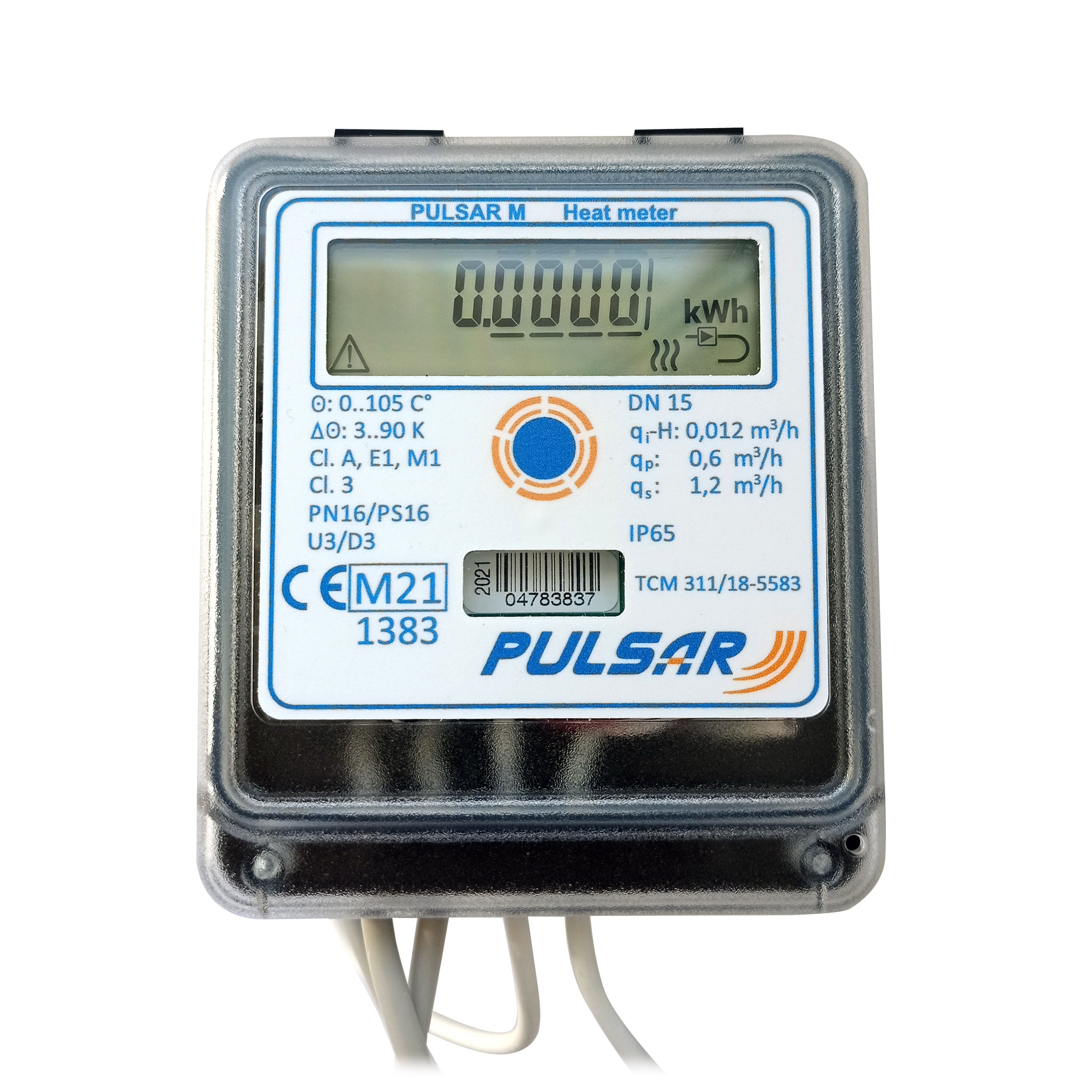

Display LCD, 8 digits+icons
Units MWh, kWh, GJ, Gcal
Inputs (optional) 4 pulse type for external meters
Power supply, V 3,6 V, Lithium, 10 years
Temperature sensors Pt1000
Data archive in non-volatile memory: hours/day/month Data archive in non-volatile memory: hours/day/month
