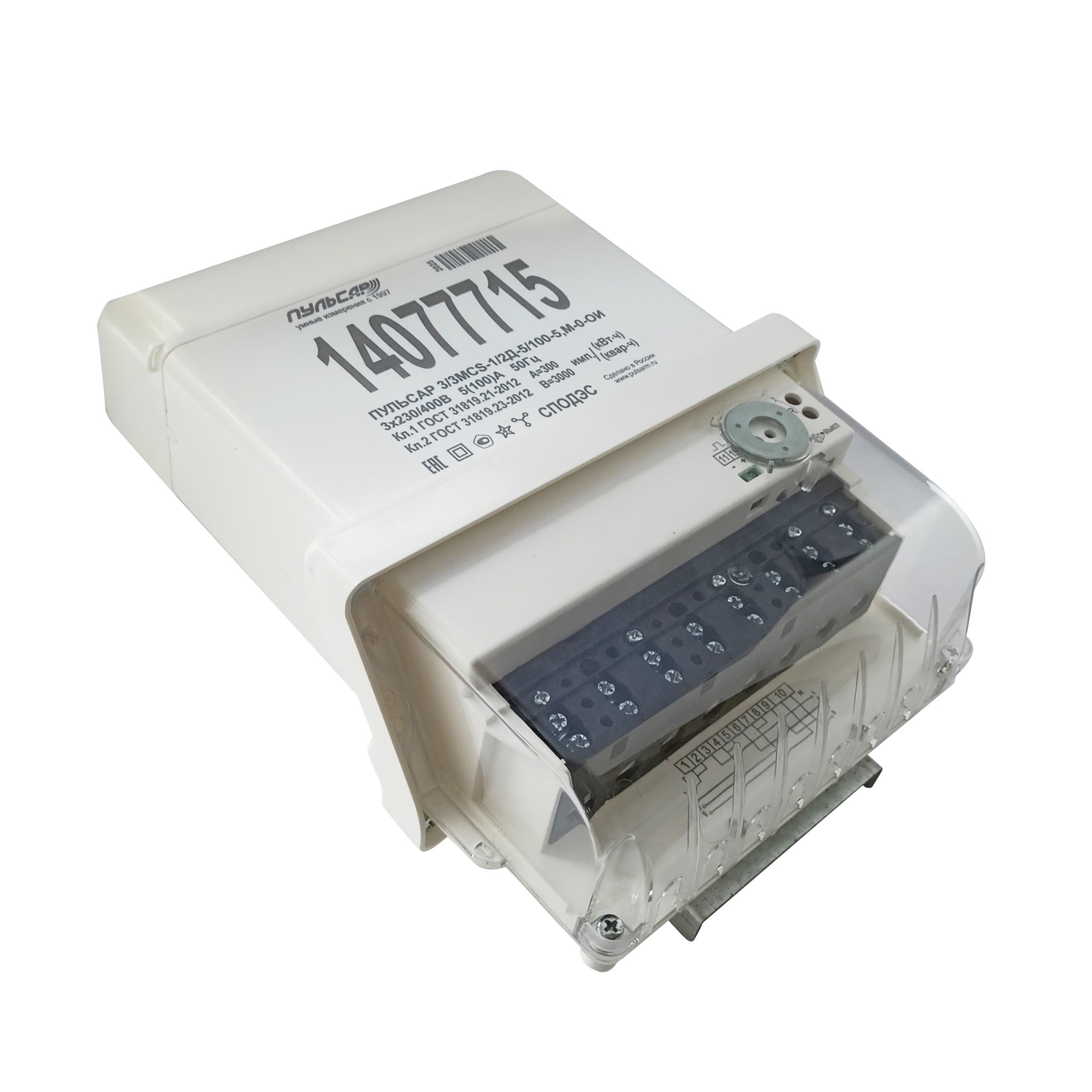

Electricity three-phase multifunctional meters Pulsar 3 SPLIT

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Купить оптом

Description

Designed for measuring and accounting in multi-tariff mode of active (in one or two directions) and reactive electrical energy.

Interfaces:

  • Optical port
  • LoRa
  • NB-IoT+2G
  • NB-IoT
  • 2G
  • PLC+RF
  • RF
  • Combined channels possible

Interfaces for communication with the remote control:

  • RF 868

Available according to IEC 62052.

  • Powerful built-in microcontroller
  • Warranty period 7 years
  • Reactive energy measurement (in all modifications)
  • Magnetic field sensor
  • Housing protection degree IP54
  • Mounting on a power line support or on a self-supporting insulated wire
  • Reliable components only from trusted manufacturers
  • Own software for setup and data collection with the possibility of group configuration
Rated phase / phase-to-phase AC voltage Unom, V 3×230/400
Accuracy classes for measuring active/reactive electrical energy 1/1; 2
Limit operating voltage range, V 0…265
Rated network frequency, Hz 50±7,5
Base (Ib) / maximum current, A 5/60; 5/100; 10/100
Starting current when measuring active electrical energy 0,004·Ib
Starting current when measuring reactive electrical energy for accuracy classes, A
1 0,004·Ib
2 0,005·Ib
Total and active power consumed by each voltage circuit (excluding communication module), at rated voltage and rated frequency, V ּ A (W) no more 10 (2,0)
Total power consumed by each current circuit at rated voltage and rated frequency, V ּ A no more 0,3
Data safety during power interruptions, years 32
Information protection Seal, tamper sensors and password access
Maximum switching voltage of the built-in relay, V 250
Operating temperature range, °C -45 ... +70
Storage temperature range, °C -45 ... +70
Archives with variable integration time/hours/days/months 100 days (at 30 minute intervals) /4320/180/42
Meter weight, kg no more 1,9
Calibration interval, years 16
Lithium battery life, years 16
Average meter service life, years 32
Overall dimensions (height × length × width), mm 256х236х124
