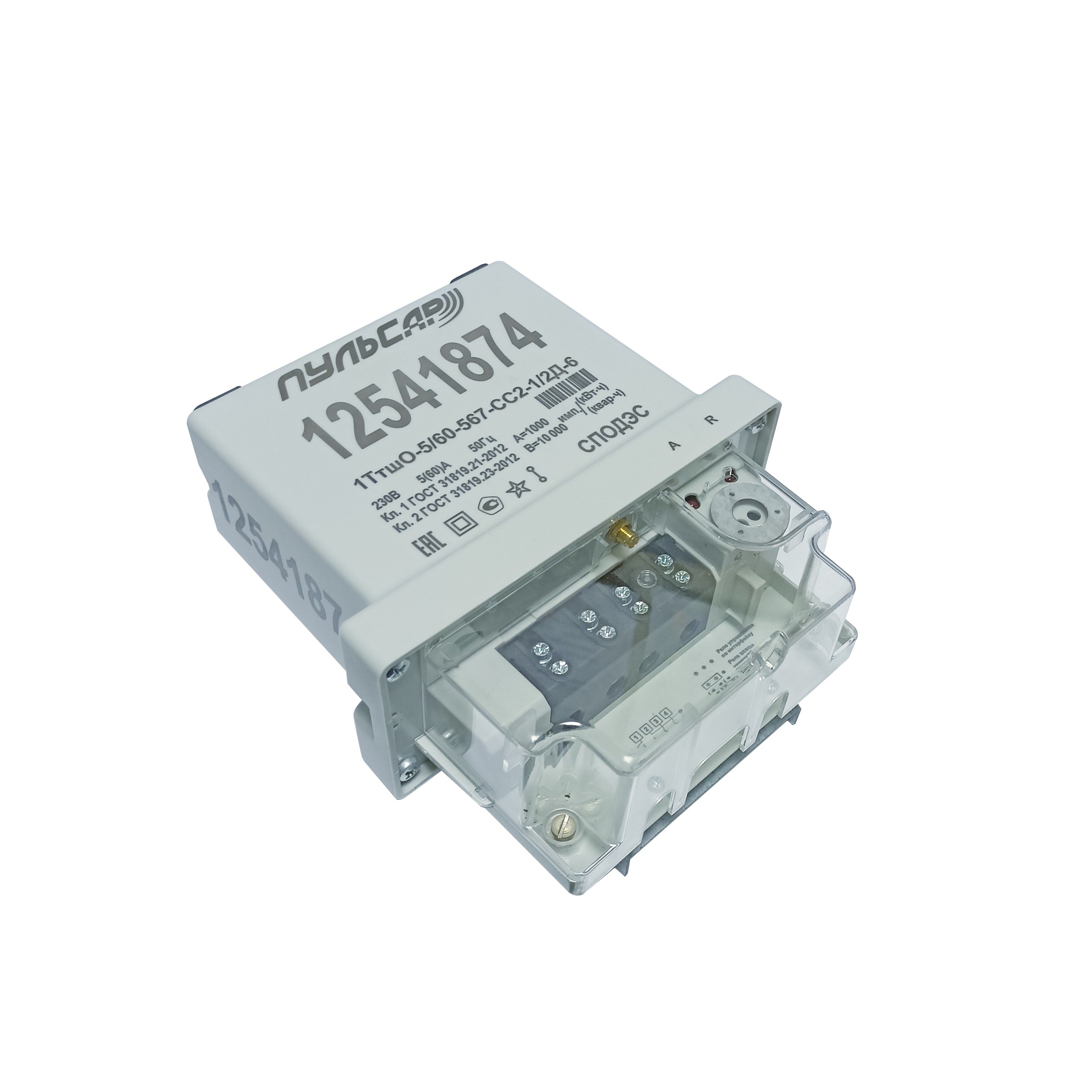

Electricity single-phase multifunctional meters Pulsar 1 SPLIT

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Купить оптом

Description

Designed for measuring and accounting in multi-tariff mode of active (in one or two directions) and reactive electrical energy.

Interfaces:

  • Optical port
  • LoRa
  • NB-IoT+2G
  • NB-IoT
  • 2G
  • PLC+RF
  • RF
  • Combined channels possible

Interfaces for communication with the remote control:

  • RF 868

Available according to IEC 62052.

  • Powerful built-in microcontroller
  • Warranty period 7 years
  • Reactive energy measurement (in all modifications)
  • Magnetic field sensor
  • Housing protection degree IP54
  • Mounting on a power line support or on a self-supporting insulated wire
  • Reliable components only from trusted manufacturers
  • Own software for setup and data collection with the possibility of group configuration
Accuracy class for active energy/reactive energy measurement 1/1; 2
Rated voltage Unom, V 230
Base/maximum current Ib/Imax, A 5/60; 5/100; 10/100
Starting current when measuring active electrical energy, A 0,004·Ib
Starting current when measuring reactive electrical energy for accuracy classes, A
1 0,004·Ib
2 0,005·Ib
Network frequency, Hz 50±7,5
Apparent and active power consumed by the voltage circuit (excluding communication module), at rated voltage and rated frequency, V ּ A (W) no more 10 (2,0)
Total power consumed by the current circuit at rated voltage and rated frequency, V ּ A no more 0,3
Established operating voltage range, V (0,9…1,1) Unom
Extended operating voltage range, V (0,8…1,15) Unom
Limit of the main absolute error of the clock under normal conditions, s/day ±0,5
Information protection Seal, tamper sensors and password access
Operating temperature range, °C -45 ... +70
Storage temperature range, °C -45 ... +70
Archives with variable integration time/hours/days/months 100 days (at 30 minute intervals)/ 2 976/124/42
Meter weight, kg no more 1,2
Calibration interval, years 16
Lithium battery life, years 16
Average meter service life, years 35
Overall dimensions without replaceable communication module (height x width x depth), mm 180х180х92
Overall dimensions with replaceable communication module (height x width x depth), mm 221х180х98
