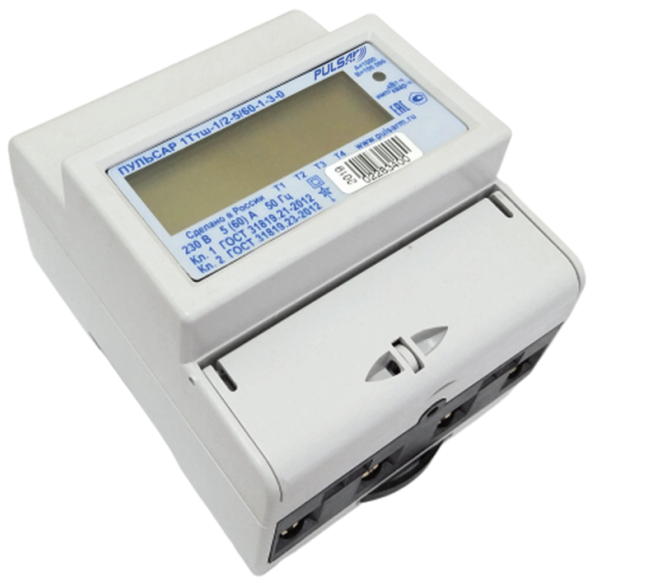

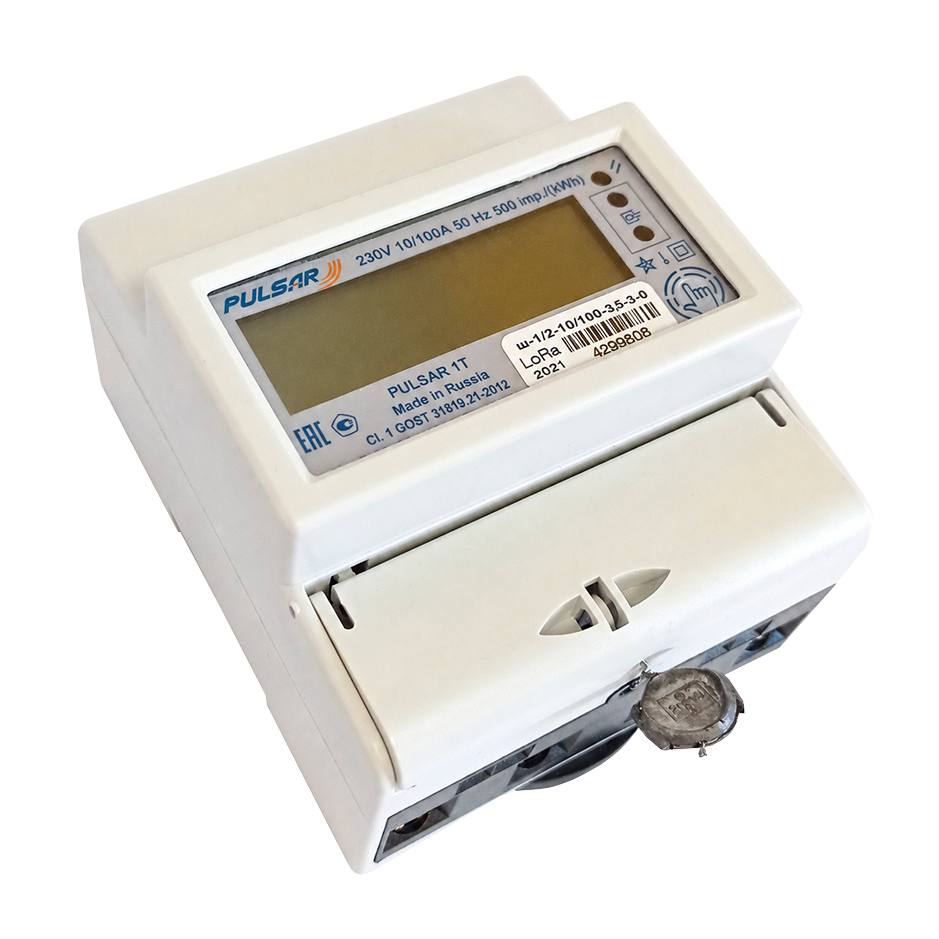

Electricity single-phase multi-tariff meters Pulsar

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Request a quote

Description

They are designed for measuring and recording active (in one or two directions) and reactive electrical energy in a multi-tariff mode

Interfaces

  • Optical port
  • RS-485 with internal supply
  • RS-485 with external power supply
  • M-Bus
  • WM-Bus
  • LoRa
  • Ultra narrow RF band
  • (Pulsar IoT)

Available according to IEC 62052.

  • Bidirectional measurement of active power
  • Voltage, current, frequency, active, reactive and apparent power measurements logging
  • Hour, day and month data history
  • The tariffs are controlled via internal clock
Accuracy (reactive energy) 1 or 2 (IEC 62053-23)
Refrence voltage Un, V 230
Voltage range, Un, % 80-120
Refrence frequency, Hz , % 50±5
Current, Ib/Imax, А 5/60; 5/100; 10/100
Operating temperature , °С -40...+60
Protection class IP51
Real Time Clock accuracy , sec/day +0,5
Time backup for RTC, years 32
Weight , kg <0,4
Dimensions HхLхW, mm 65х100х83
