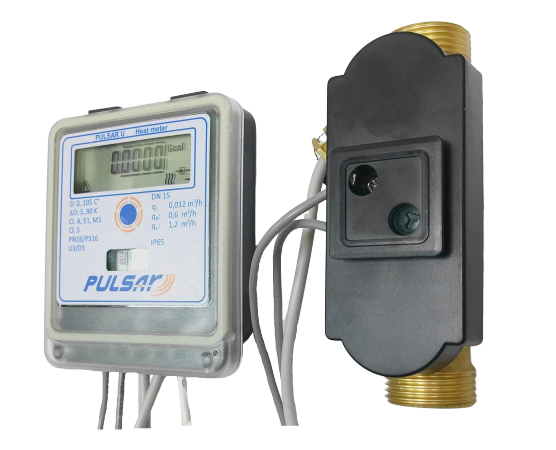

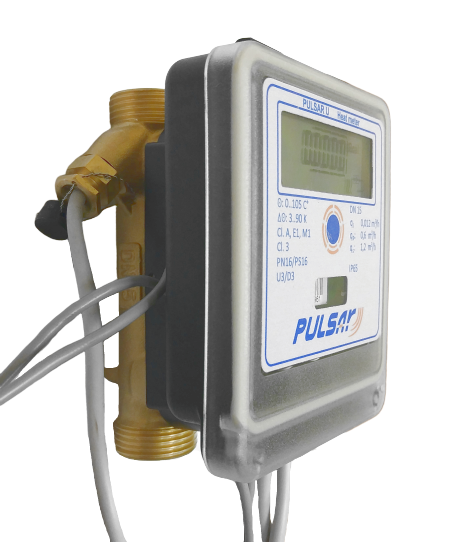

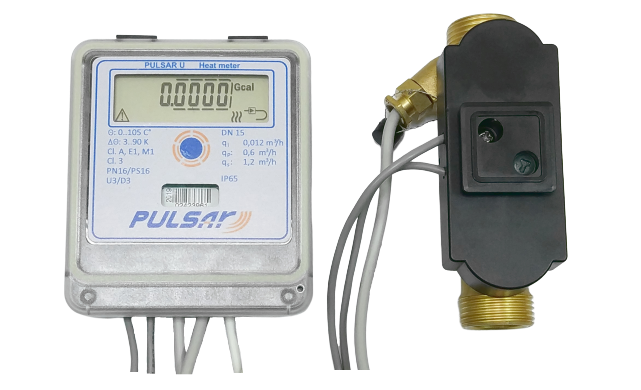

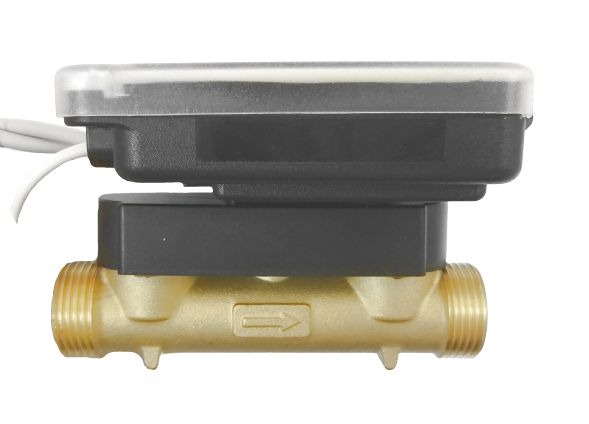

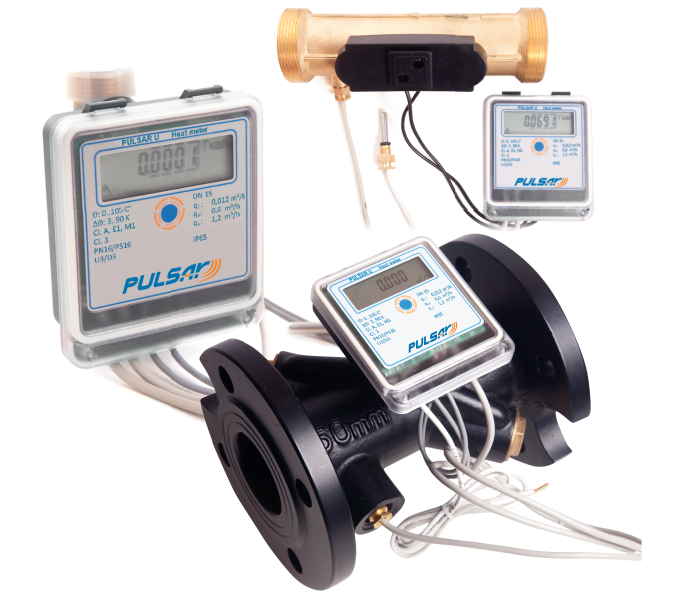

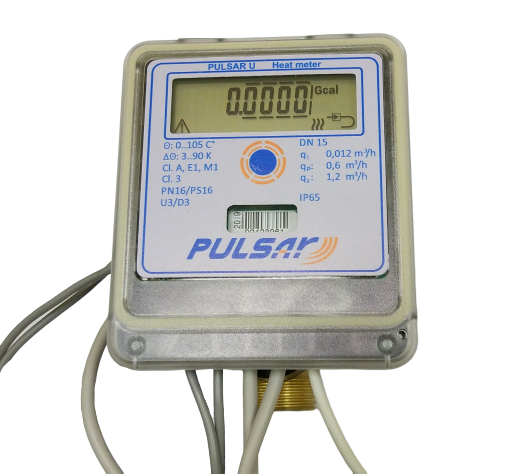

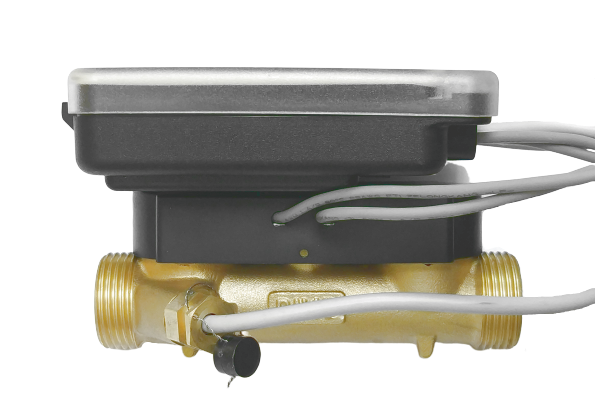

Ultrasonic heat meters Pulsar

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Купить оптом

Description

They are designed to measure heat and hot water in open and closed heat and water supply systems.

Available according to EN 1434.

Interfaces

  • Interfaces
  • RS-485
  • M-Bus
  • Wireless M-Bus
  • Ultra narrow RF band (Pulsar IoT)

  • Measures thermal energy consumption in heating and cooling systems
  • Compact dimensions
  • Removable calculator
  • High accuracy and durability
  • Insensitive against dirt
  • Self diagnostics
Flow sensor type Ultrasonic
Nominal DN 15; 20; 25; 32; 40; 50; 65; 80; 100; 125; 150; 200
Length of the pouring part, mm 110; 130; 160; 180; 200; 220; 260; 300; 360; 420; 500
Connecting thread G3/4В; G1В; G1 1/4B; G1 1/2B; G2B; Flange connection
Minimum flow rate, qi, m3/h 0,010; 0,012; 0,015; 0,025; 0,035; 0,06; 0,1; 0,25; 0,5; 0,4; 0,8; 0,6; 1,2; 1; 2; 1,5; 3
Nominal flow rate, qp, m3/h 1; 0,6; 1,5; 2,5; 3,5; 6; 10; 15; 25; 35; 40; 50; 60; 80; 100; 120; 150; 200; 300; 500
Maximum flow rate, qs, m3/h 1,2; 2; 3,5; 6; 7; 15; 20; 30; 50; 55; 70; 80; 100; 120; 160; 200; 240; 300; 400; 600; 1000
Sensitivity threshold, m3/h 0,002; 0,003; 0,004; 0,005; 0,007; 0,012; 0,02; 0,03; 0,05; 0,07; 0,08; 0,1; 0,15; 0,2; 0,24; 0,28; 0,3; 0,35; 0,7
Pressure loss at qp, MPa <0,025
Metrological class (En1434) 2
Dynamic range of flow measurement qi/qp 1:100
Housing material Brass; Cast iron
Temperature measurement range °C 1-105, (1-150)
Number of pressure sensors, pcs 2
Number of flow meters, pcs 1; 2; 3
Temperature difference measurement range, °C 3-104; (3-149)
Heat units Gcal; GJ; kWh
Indicator LCD, 8 digits+special characters
Data archive in non- volatile memory: hours/days/month 1488/184/60
