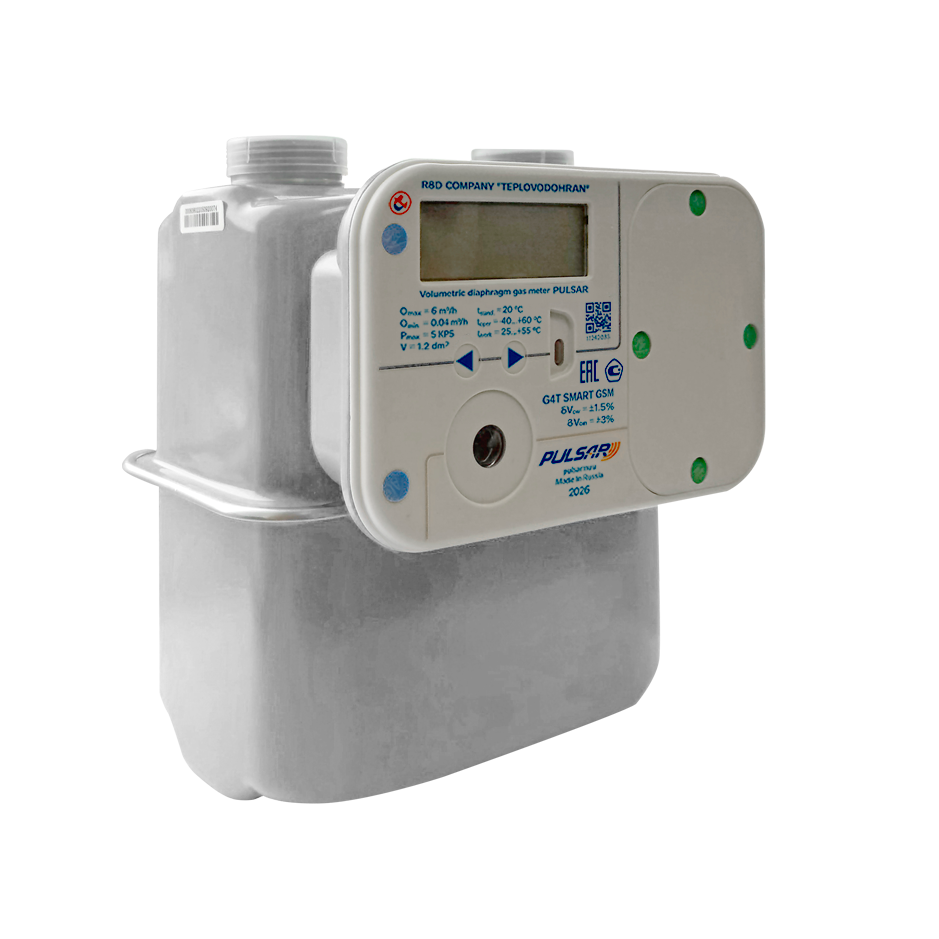

Volumetric diaphragm gas SMART meters Pulsar

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Купить оптом

Description

Designed to measure the consumption of natural gas, propane gas, butane or mixtures thereof and other nonaggressive gases. Meters can be used as a means of commercial gas metering in the utility sector, as well as in various technological processes.

  • Protection class: IP65
  • Protection against external magnetic field
  • Protection against unauthorized access
  • It is possible to connect an external GSM antenna
  • Non-volatile data history
  • AMR system
Standard size G1,6; G2,5; G4; G6; G10; G16; G25
Thread, inch G1 1/4’’; G1 3/4’’; G 2’’; G 2 1/2’’
Maximum 2,5; 4; 6; 10; 16; 25; 40
Nominal 1,6; 2,5; 4; 6; 10; 16; 25
Minimum 0,016; 0,025; 0,04; 0,06; 0,1
Maximum working pressure, kPa, no more 50
Sensitivity, m3/h, no more 0,0032; 0,005; 0,008; 0,008; 0,01; 0,01; 0,01
Pressure loss, kPa, no more 0,2; 0,25; 0,3
Working temperature, Сº - 25 ...+ 55
Ambient temperature, Сº - 25 ...+ 55
Center-to-center distance between fittings, mm 110; 250; 280; 335
Interfaces Optical port, GSM, NB-IoT, LoRa
