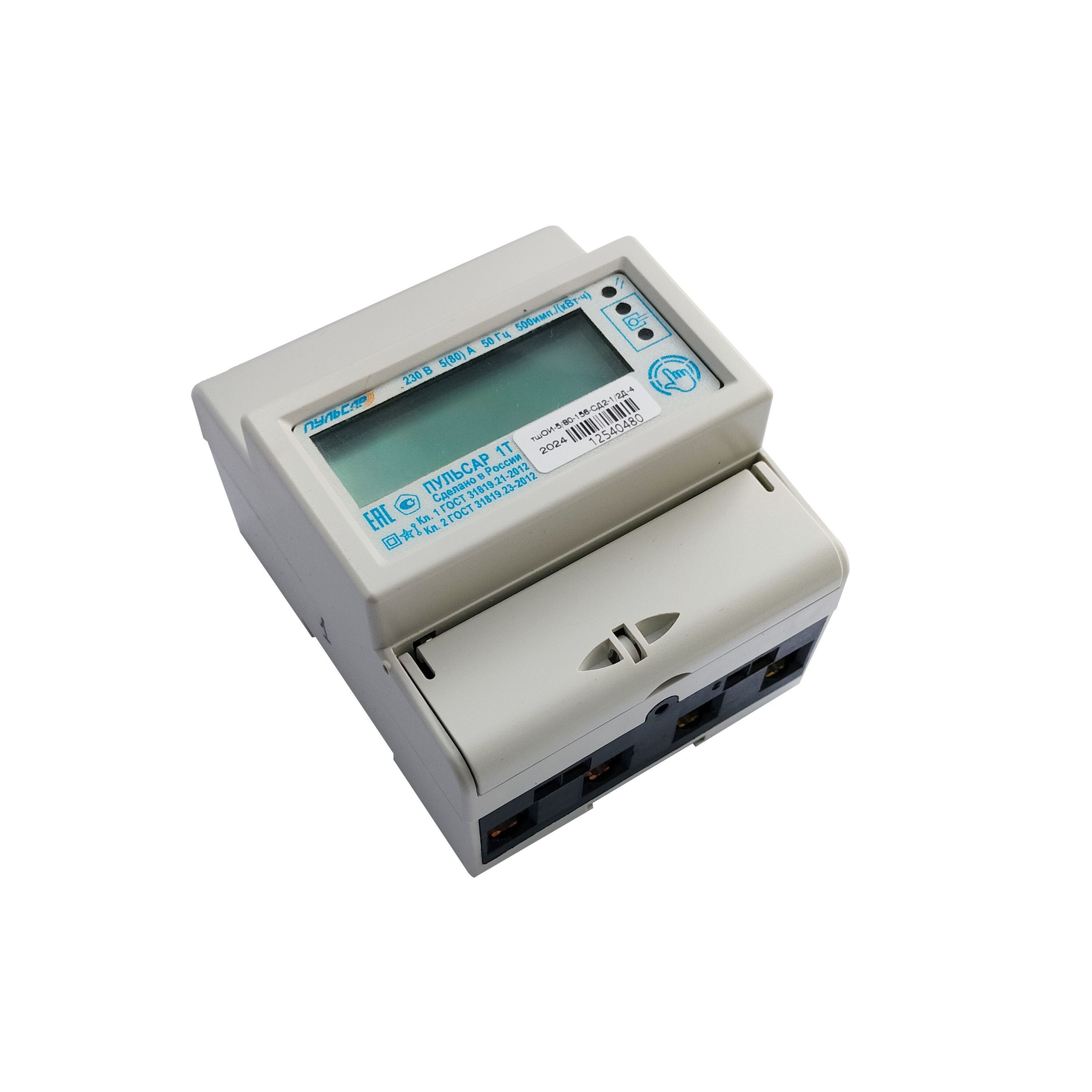

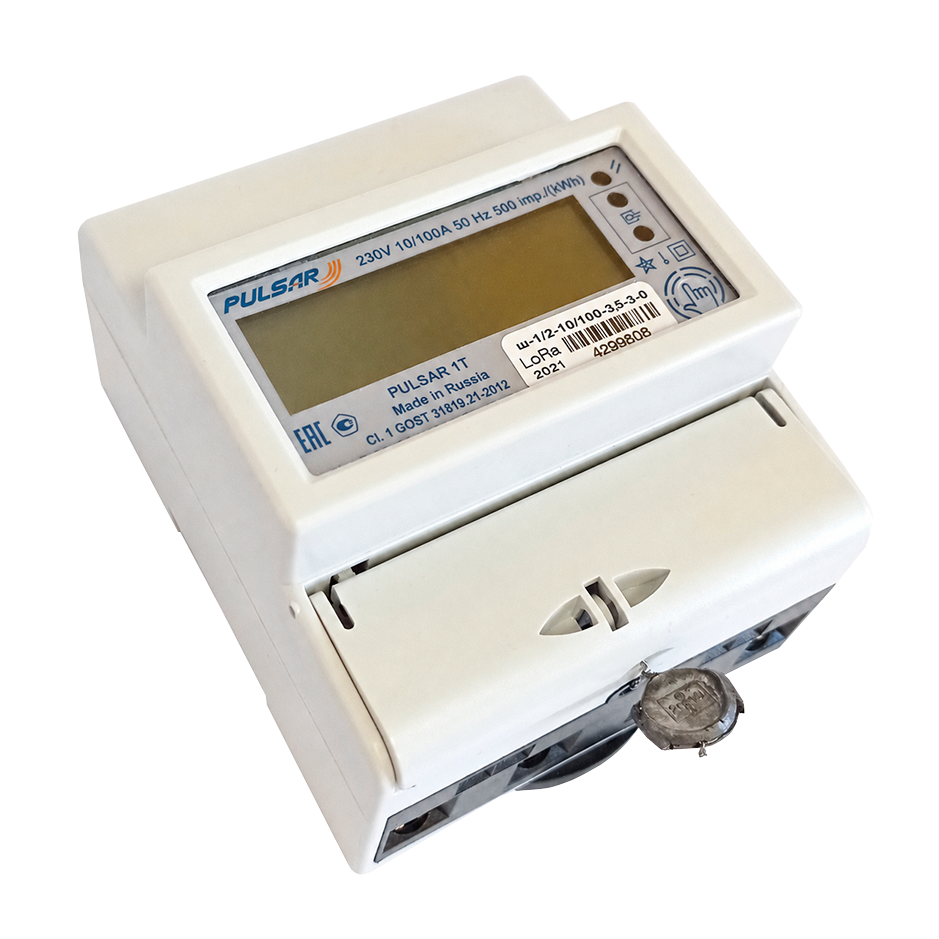

Electricity single-phase мultifunctional meters Pulsar 1 MINI

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Request a quote

Description

They are designed for measuring and recording active (in one or two directions) and reactive electrical energy in a multi-tariff mode.

Available according to IEC 62052.

Interfaces

  • Optical port
  • RS-485
  • RS-485, NB-IoT+2G
  • RS-485, 2G
  • Powerful built-in microcontroller
  • Relay with blocking capability
  • Мagnetic f ield immunity
  • Small-sized case
Accuracy class of active energy accordion 1/ 2
Nominal voltage Unom, V 230
Base/maximum current Iб/Imax, A 5/80
Starting current when measuring active/reactive energy, mA 20/25
Nominal network frequency, Hz 50±7,5
Basic error of voltage measurement, % ±0,5
Current measurement range, A 0,1·Iб…Im
Service life of lithium battery of watches, years 16
Data retention during power outages, years 32
Operating temperature range, °C -40…+60
Degree of protection of the housing according to GOST 14254-2015 IP51
Storage temperature range, °C -40...+70
Weight of the counter, kg, no more than 0,6
Average service life of the meter, years 35
Overall dimensions (with GSM interface) (height × width × depth), mm, max 105x82x65
Overall dimensions (without GSM interface) (height × width × depth), mm, max 100x82x65
