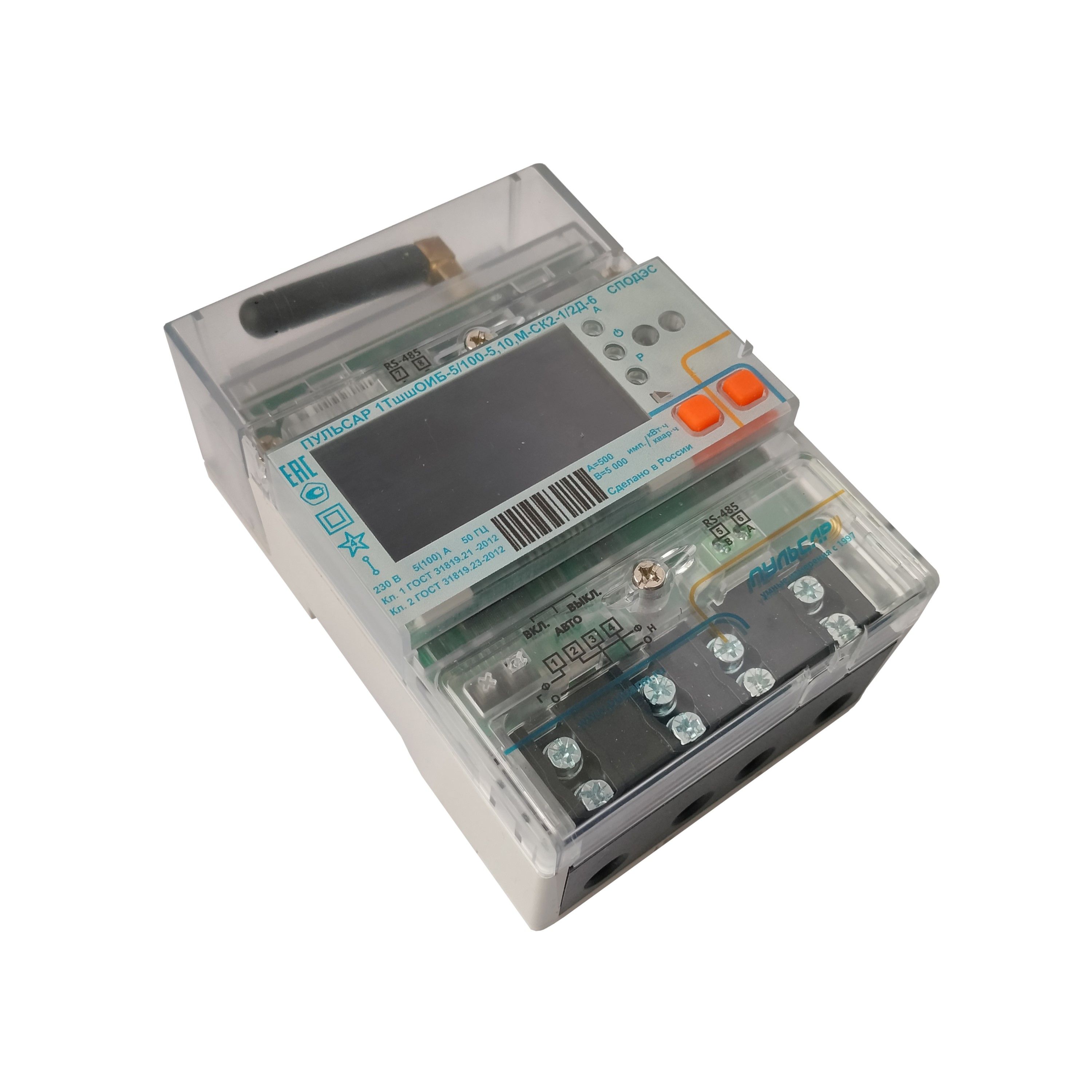

Electricity single-phase meters Pulsar Compact DLMS

detail__img

Price on request

Скидка предоставляется на оптовые партии при указании адреса объекта

Купить оптом

Description

They are designed for measuring and recording active (in one or two directions) and reactive electrical energy in a multi-tariff mode

Interfaces

Meter

  • Optical port
  • RS-485

Module

  • RS-485
  • NB-IoT+2G
  • NB-IoT
  • 2G
  • LC+RF
  • RF
  • LoRa
  • Warranty period 7 years
  • Active and reactive energy metering
  • Powerful built-in microcontroller
  • Relay with blocking capability magnetic field immunity
  • Non-detachable body
  • Data history
  • Bidirectional measurement of active power
  • Wall mounting on DIN rail
  • Changeable communication module
Accuracy class when measuring active IEC 62053-21/ reactive energy according to IEC 62053-23 Class 1/ 1 or 2
Rated voltage Unom, V 230
Base/maximum current Ib/Imax, A 5/60; 5/100; 10/100
Network frequency, Hz 50±7,5
Established operating voltage range, V (0,9…1,1) Unom
Extended operating voltage range, V (0,8…1,15) Unom
Network voltage measurement range, V 175…310
Basic voltage measurement error, % 0,5
Main current measurement error, % 0,5
Basic error of network frequency measurement, Hz 0,05
Limit of the main absolute error of the clock under normal conditions, s/day ±0,5
Data safety during power interruptions, years 32
Operating temperature range, °C -40...+70
Storage temperature range, °C -40...+70
Archives with variable integration time/hours/days/months 100 days (at 30 minute intervals) /4320/180/42
Meter weight, kg, no more 0,5
Calibration interval, years 16
Lithium battery life, years 16
Average meter service life, years 35
Overall dimensions (height х length х width), mm 130х90х60
